Commercial wide-body airplanes’ deliveries per year, 1969-2017

In the last weeks, both Airbus and Boeing have released the figures of aircraft deliveries for the complete 2017. This is just a quick post to update a graphic with the commercial wide-body airplanes’ deliveries per year since 1969 (year of the introduction of the 747) till 2017 (1).

Commercial wide-body airplanes' deliveries per year, 1969-2017

Commercial wide-body airplanes’ deliveries per year, 1969-2017.

Some reflections:

For the first time ever, in 2015 over 400 twin-aisle aircraft were delivered in a year (412), the same feat was achieved in 2016 (402). In 2017 production descended to 394 twin-aisles, still the third best year in wide-body history.

The average number of deliveries for the previous 20-year period (1997-2016) was 239 airplanes per year. Up to now, in the 49 years of twin-aisle market, in only 6 years more than 300 airplanes were delivered in a single year, the six last years, and only in other 9 years more than 200 airplanes had been delivered.

The combined steep production ramp-up during last years has enabled to reach a production rate of more than the double of what was produced in 2010. In particular, the combined compound annual growth rate (CAGR) of the rate of deliveries for the last 10 years has been 7.1%. These rates are above the yearly growth of traffic (measured in RPKs).

With the figures up to the end of 2017, nearly 8,800 wide-body airplanes had been delivered. Thus, by mid-2018, we will certainly reach the 9,000th. However, we won’t know whether the 9,000th twin aisle will be a Boeing or an Airbus.

The share of wide-body deliveries in 2017: 59% Boeing and 41% Airbus.

There were 136 787s delivered in 2017. A remarkable feat: one aircraft short of its 2016 record of 137 deliveries, the largest amount of twin-aisle deliveries of a single model in a single year ever. Only the 787 and the A330 have ever been delivered in excess of 100 aircraft in any given year (4 times for each aircraft).


(1) See here a previous post with the figures up to 2015.

Advertisements

Leave a comment

Filed under Aerospace & Defence

Commercial wide-body airplanes’ deliveries per year, 1969-2015

The first wide body commercial airplane, the first twin-aisle ever, the Boeing 747 first flew in February 9th 1969 and it was first delivered to a customer (Pan Am) in December 1969. In the following years new wide bodies arrived to the market: the Douglas DC-10 (in 1971), the Lockheed TriStar (1972), the Airbus A300 (1974)…

In the last weeks, both Airbus and Boeing have released the figures of aircraft deliveries for the complete 2015. With them I updated a graphic I had made back in 2013 with the commercial wide-body airplanes’ deliveries per year. Take a look at it.

Commercial wide-body airplanes' deliveries per year, 1969-2015.

Commercial wide-body airplanes’ deliveries per year, 1969-2015.

Some reflections:

For the first time ever, over 400 twin-aisle aircraft were delivered in a year. The feat is remarkable.

The average number of deliveries for the previous 20-year period (1995-2014) was 215 airplanes per year. Up to now, in the previous 46 years of twin-aisle market, in only 3 years more than 300 airplanes were delivered in a single year (the previous 3: 2012, 2013 and 2014) and only 12 times more than 200 airplanes had been delivered (including the previous 3 with more than 300).

The combined steep production ramp-up during last 4 years has enabled to reach a production rate of almost the double of what was produced just 5 years ago. In particular, the combined compound annual growth rate (CAGR) of the rate of deliveries for the last 5 years has been 16.1%, for the last 10 years 10.4%. These rates are the triple and double than the yearly growth of traffic (measured in RPKs).

With the figures up to the end of 2015, almost 8,000 wide-body airplanes had been delivered. Thus, by now, end of January 2016, we have certainly reached the figure (1). We however don’t know whether the 8,000th twin aisle was a Boeing or an Airbus (2).

The share of deliveries in 2015: 65% Boeing and 35% Airbus. Boeing has slightly increased its share of deliveries in the last 4-5 years, in particular with the ramp-up of the 787.

There were 135 787s delivered in 2015. That is another remarkable feat: the largest amount of twin-aisle deliveries of a single model in a single year ever.

Only 6 times ever (combination of model-year) have there been twin-aisle deliveries of over a hundred airplanes: the A330 in the last 4 years (with a peak of 108 airplanes in 2013 -then a record- and 2014) and the 787 the last two years. Only other 10 times there were deliveries of more than 80 airplanes of a single model in a year: the A330 (2010-2011), the 747 in 1970 and the 777 (7 times, including the last 4 years consecutively, out of which the last 3 on the verge of 100 deliveries – 98, 99, 98).

Two days ago Boeing released its 2015 earnings, and with it news of 777 production cut came up. Some time before similar news had come of 747 production rate decrease. With these news, quickly came comments of whether aerospace cycle may have peaked (see here). Looking backwards it’s clear that 2015 was a peak in wide-bodies deliveries. Looking forward it may have been a short-term peak, but looking further ahead it is not so clear. I will leave for another post the outlook of past deliveries mixed with what Airbus and Boeing market forecasts say (GMF and CMO, respectively).

(1) With the sources I used,  at the end of 2015 there were a combined 7,988 wide-bodies delivered. However, I found different figures for the deliveries of the Ilyushin IL-86 (between 95 and 106). In any case, both figures would leave the total tally below 8,000 (making 2016 “the year of the 8,000th delivery”); I took for the analysis most conservative figure.

(2) Working at the moment for the Airbus A330neo programme, I will assume the 8,000th delivery was an A330, rather than a Boeing.

(3) I have indicated in the post that we have just passed the mark of 8,000 wide-bodies delivered since 1969, and, on the other hand, the different studies state that there are about 4,900 twin-aisle in operation. The gap of ~3,100 airplanes corresponds to those retired, parked, scrapped, crashed, displayed in museums…

2 Comments

Filed under Aerospace & Defence

Twin-aisle aircraft deliveries 20-year forecast

I read in the following article “Airbus seeks to increase Washington State supply business; aims for 13 A350s/mo” (from Leeham News) how from a presentation of a A350 supplier (ElectroImpact) at an aerospace suppliers event in Washington State, it was concluded that the Airbus aimed at building 13 A350s per month, as the mentioned supplier had built its factory with capacity to extend production rates up to those 13 aircraft.

This would be news because in its presentations Airbus talks about a production ramp-up up to 10 a/c per month (as does Boeing for the 787, which 10 aircraft/month should be reached by the end of 2013).

Having analyzed several times Airbus’ Global Market Forecast (GMF) and Boeing’s Current Market Outlook (CMO), I believe that those production rates of above 10 aircraft per month should be expected by industry followers just by seeing the numbers included in those forecasts.

In 2012, the GMF forecasted about 6,500 twin-aisle to be delivered in the next 20 years. The CMO indicated 7,210 aircraft. In 2013, Boeing CMO slightly reduced the figure to 7,130 a/c.

Comparison of Airbus GMF and Boeing CMO 2012-2031.

Thus, both companies expect between 6,500 to 7,200 twin-aisle passenger aircraft to be delivered in the following 20 years (excluding freighters, 747 and A380 – these 2 considered as Very Large Aircraft in the studies).

1st approach. If we were to take the mid-point of both forecasts, about 6,850 a/c, and simply divided by 20 years, we would reach to an average figure of 343 twin-aisle aircraft to be delivered per year between the 2 manufacturers, or 28 a/c per month. If Airbus wanted to maintain the long-term 50% market share, it would have to aim at delivering 14 a/c per month between all its twin-aisle products, which soon will be A330 and A350.

2nd approach. However, current twin-aisle production levels are in no way close to those 343 a/c per year. In 2012 there were 258 deliveries thanks to the introduction of 787s, but in the previous decade the average was about ~165 a/c per year. Thus, manufacturers must have a deliveries’ ramp up to accommodate those 6,850 in the next 20 years. Not knowing what that ramp-up is, I just linearized from where we are today and what is to be delivered.

I plotted in the graphic below all the deliveries of twin-aisle (excluding Very Large Aircraft) from the 1970s to 2012, and then what a forecast could be departing from 2012 deliveries’ figure to accommodate ~6,850 a/c in the next 20 years.

Taking a look at the graphic, one can already understand that if we take the GMF and CMO forecasts as good ones, the manufacturing rhythm will have to accelerate in the following years, especially in the second decade. In the late 2020s, over 400 twin-aisle would have to be delivered per year (over 33 per month), thus manufacturers will have to churn above 16 a/c per month each, that is the double of what they produced during the last decade.

Twin-aisle deliveries: historic series (1970s-2012) and forecast (excludes VLA -A380  & 747).

Twin-aisle deliveries: historic series (1970s-2012) and forecast (excludes VLA -A380 & 747).

Market shares. One could wonder whether this growth will favour more one company or the other. I compared market shares (excluding VLA):

  • in 2012: Boeing delivered 155 twin-aisle (26 767s, 83 777s, 46 787s) vs. Airbus 103 a/c (101 A330s, 2 A340s)… 60% / 40%.
  • in 2003-2012: Boeing delivered 839 twin aisle (148 767s, 642 777s, 49 787s) vs. Airbus 880 a/c (44 A300s, 687 A330s, 149 A340s)… 48% / 51%.
  • in 1993-2012: Boeing delivered 1,687 twin aisle (572 767s, 1,066 777s, 49 787s) vs. Airbus 1,521 a/c (175 A300s, 31 A310s, 938 A330s, 377 A340s)… 50% / 45%.

[The shares in the past decades include marginal deliveries from Ilyushin models and McDonnell Douglas models, which share I kept out of Boeing even after the merger in august 1997, these are ~30 a/c to be added to the 1,687]

Seeing that market shares have been fluctuating but always around 40-60% for each company, they could expect to have to at least deliver 40% of those 6,850 a/c in 20 years, or of those above 400 a/c in the late 2020s.

Backlog. Finally, just to see how the twin-aisle mix for each company is going to be, let’s look at the aircraft on order (backlog) that each company has as of today (end June 2013):

  • Airbus (43%):
    • A330: 260 a/c to be delivered.
    • A350: 678 a/c to be delivered.
  • Boeing (57%):
    • 767: 56 a/c to be delivered.
    • 777: 339 a/c to be delivered.
    • 787: 864 a/c to be delivered.

Thus, of the 6,850 twin-aisle to be delivered in the next 20 years, about 2,200 are already contracted as of today (plus the above 130 a/c delivered within the first half of 2013), thus 33% of those 6,850 a/c is more or less secured and among those the split is 57 / 43 for Boeing.

2 Comments

Filed under Aerospace & Defence

The real comfort starts from 300 kg seats

In a previous post we introduced some comparisons of aircraft by its price per kilogram. There, we could see a trend in bigger aircraft being cheaper in this per kg basis. This raises the question: do bigger aircraft require less weight per seat? Are they lighter in a kg per seat basis?

This is what intuition seems to tell us; after all, once you have put in place the engines, wing, tail… what can be the difference between a larger or smaller fuselage…

Let’s use the same sources we used in the previous post and take the typical seat configuration that the OEMs (Original Equipment Manufacturer) indicate for each aircraft model. We get the following table:

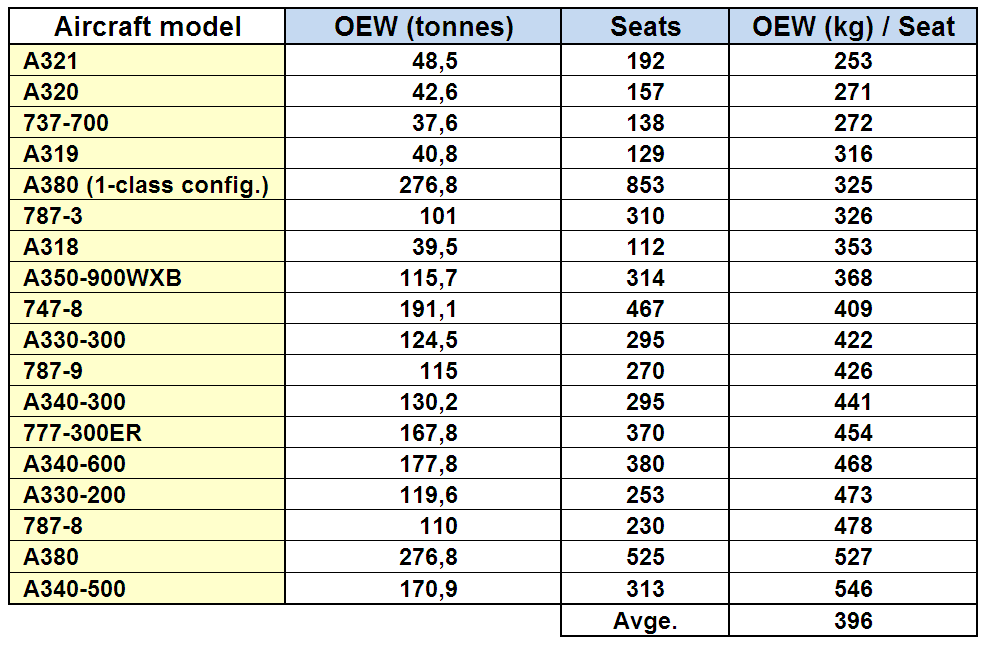

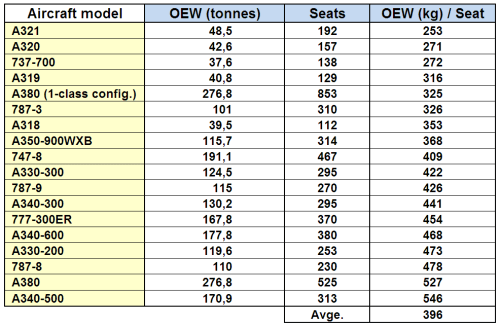

Aircraft OEW (kg) per seat.



Our intuition wasn’t very successful again. In the upper part of the table we find the A320 family and 737s aircraft (those used by e.g. Easyjet and Ryanair in short-haul routes). In the bottom of the list we find the A380, A340, A330, 787, 777…, the biggest aircraft.

We see that the average is about 400 kg per seat. Let’s compare this figure again with cars, with the same cars as we did in the previous post. We now get following table:

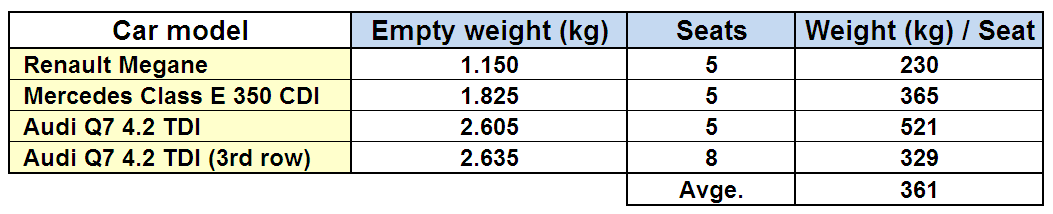

Cars empty weight (kg) per seat.



It turns out that cars also need around 300-500 kg of structure per seat (an average for these ones of 360 kg). Since most cars carry 5 passengers, here it’s easy to see the trend: bigger cars employ more kilograms per seat.

Let’s go for a closer comparison:

  • Small for small: take the A321 with 253 kg/seat, it is quite similar to the Renault Megane with 230 kg/seat.
  • Large for large: take the A380 with 527 kg/seat, it is almost identical to the Audi Q7 with 527 kg/seat.

One step further: The A380 used so far is the 3-class configuration with 525 passengers, but wasn’t there a high density configuration with 853 passengers in a single class? (This matches well with the jargon: cattle-class…). This configuration gives us 325 kg/seat… this is again almost identical to the 329 kg/seat given for the Audi Q7 in “high density” configuration, obtained with the optional 3rd row of seats, which only adds 35 kg to the weight of the car. Aren’t these remarkable coincidences? Is it a constant of the universe? 🙂

Let’s compare these results with buses, city buses and minibuses:

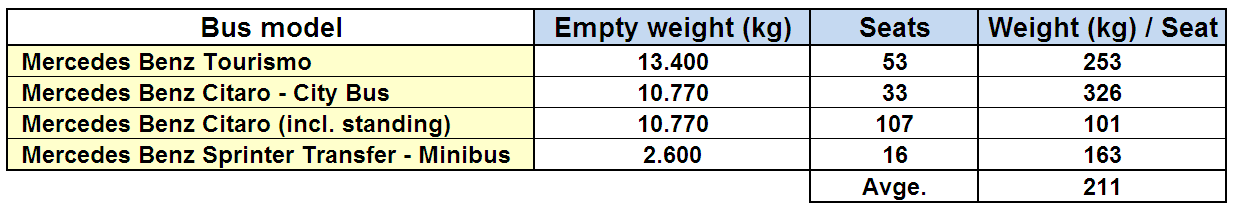

Buses empty weight (kg) per passenger.



When we compare the figures of touring and city buses in an all-seated configuration we get again similar figures than planes and cars (~290 kg/seat ~ A320 family). If we take a fully loaded city bus we descend to the crude reality of mass transportation and complete lack of comfort (100 kg/seat; that is cattle-class…). We may notice as well that a minibus weighs less than a Q7 and carries twice or three times as many people.

Let’s now see the train and subway. For this purpose, we’ll check the coaches R-142A and B of the subway of New York which are built by Kawasaki Heavy Industries (which a supplier for the Boeing787 as well). The train we’ll use is the AVE Series 100 of RENFE, built by Alstom, which was the first high-speed train ever used in Spain in 1992. See them in the following table:

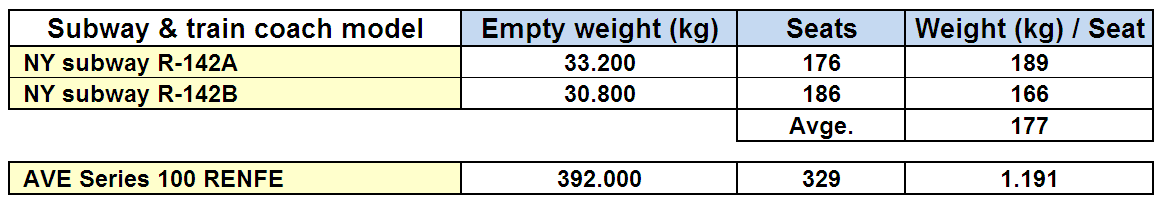

Subway and high-speed train weight (kg) per passenger.



The subway is below the levels of aircraft, but not that low as city buses. As far as the train is concerned: that’s another story, a luxurious experience (achieved with ~1,200 kg/seat) that can only be improved by Singapore Airlines Suites.

Below we can see again a graphic with all modes of transportation compared, there we may spot some trends.

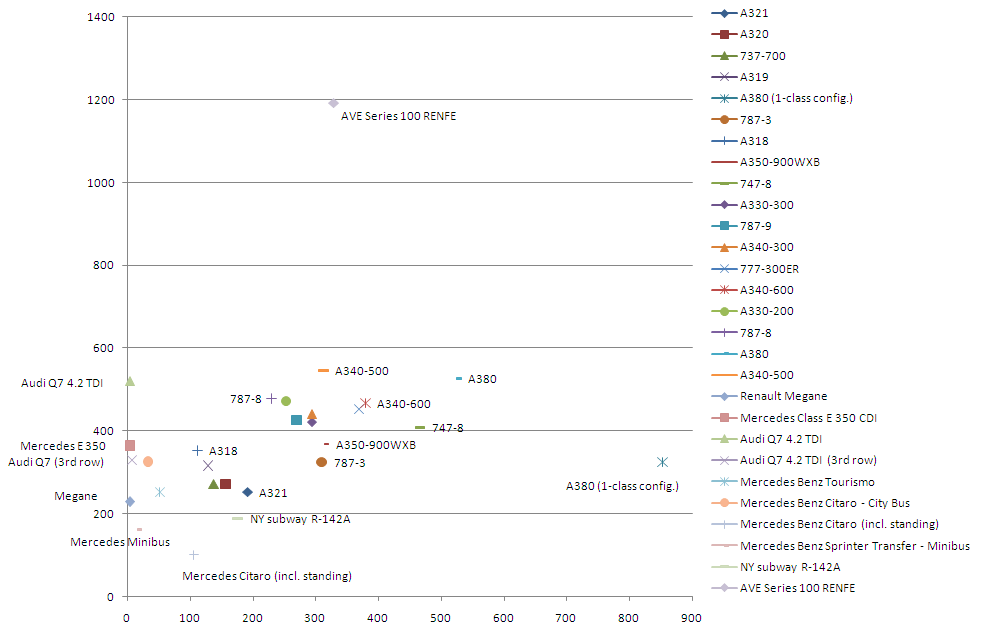

Modes of transportation weight (kg) per passenger/seat.



We could say that comfort starts above 300 kg/seat… How heavy is your car?

Different modes of transportation.
