Boeing 787 orders, cancellations, deliveries & backlog through 2015

Quick post with the updated figures and graphic of orders, cancellations, deliveries and backlog of the 787 programme at the end of 2015.

There were no major operational hick-ups in 2015, but commercially it saw 28 cancellations for 99 gross orders, thus, 71 net orders. This, together with the increased ramp up which enabled 135 deliveries, make that the book to bill of the programme stood at 0.53, far from a desired >1. Therefore, the backlog at year-end continued to decrease down to 779 aircraft (1).

An image is worth a thousands words:

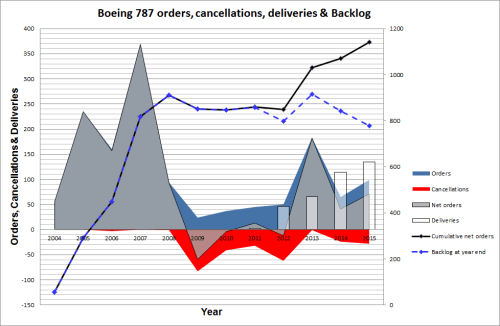

787 orders, cancellations, deliveries and backlog through 2015.

787 orders, cancellations, deliveries and backlog through 2015.

(1) That level is lower than 2007 year-end backlog. The highest at previous year-ends was 916 in 2013.

Advertisements

Leave a comment

Filed under Aerospace & Defence

Twin-aisle aircraft deliveries 20-year forecast (update 2015)

In a previous post I shared a graphic with the “Commercial wide-body airplanes’ deliveries per year, 1969-2015” (see below). I then commented:

“Looking backwards it’s clear that 2015 was a peak in wide-bodies deliveries. Looking forward it may have been a short-term peak, but looking further ahead it is not so clear.”

Commercial wide-body airplanes' deliveries per year, 1969-2015.

Commercial wide-body airplanes’ deliveries per year, 1969-2015.

Last November, I published a post, “Airbus vs. Boeing, comparison of market forecasts (2015)“, with the following table that compares Airbus’ Global Market Forecast and Boeing’s Current Market Outlook:

Comparison of Airbus GMF and Boeing CMO 2015-2034.

Comparison of Airbus GMF and Boeing CMO 2015-2034.

If we focus on the twin-aisle segment, we see that both companies are very closely forecasting between 7,500 and 7,600 passenger aircraft deliveries (with less than 90 aircraft of difference, a 1.2% deviation). The forecast for the freighters is not shown in the table but it is also very similar for the segment, between 718 (Airbus’ view) and 800 (Boeing’s) freighter aircraft. In combination, each company foresees between  8,290 (Boeing view) and 8,297 (Airbus’) airplanes’ deliveries in the segment. Remarkably similar and definitely converged from years ago.

In the very large aircraft segment both forecasts do not converge. But since the figures of deliveries are an order of magnitude lower, I will focus on what they define as “twin-aisle” segment.

Let’s put forward again the question: was 2015 a peak year in terms of twin-aisle deliveries?

Quick math: if we take those ~8,300 aircraft to be delivered in the next 20 years, we arrive at an average of 415 aircraft per year. That figure excludes the very large aircraft. In 2015, there were 367 deliveries of twin-aisles (excluding A380 and 747):

  • A330: 103
  • A350XWB: 14
  • 767: 16
  • 777: 98
  • 787: 135
  • IL-96: 1

Thus, in 2015 we would have been far from the peak. If we simply linearized those 8,300 deliveries from 2015 levels up to 2034, we would get the following profile:

Twin-aisle deliveries historic and 20-year forecast.

Twin-aisle deliveries historic and 20-year forecast.

The reader may correctly think that market forecast figures are not engraved in stone and are rather optimistic. Fair enough.

Both forecast have been rather accurate in the past forecasting traffic growth. Not necessarily in forecasting the number of aircraft in each specific segment. See the post, “Aircraft market forecasts accuracy (update 2014)“,  in which I analyzed Boeing CMO forecast of 1999 with the actual fleet at the end of 2013. See the result below:

Comparison of aircraft fleet at year-end 2013: 1999 forecast vs. actual (sources: Boeing CMO 1999 and 2014).

Comparison of aircraft fleet at year-end 2013: 1999 forecast vs. actual (sources: Boeing CMO 1999 and 2014).

Thus, in 2013 there were 27% less twin-aisle aircraft than what had been predicted in 1999.

If 2015 market forecasts were off the mark in the same proportion (27%), that would mean that instead of 8,300 airplane deliveries in the next 20 years we would see about 6,050… meaning ~300 airplanes per year in the 20-year span.

In that case, we might have seen the peak.

Let’s take a look at current backlogs at the end of 2015:

  • Airbus: 1,112 a/c
    • A330 family: 350 a/c
    • A350: 762 a/c
  • Boeing: 1,383 a/c
    • 767: 80 a/c
    • 777 family: 524 a/c
    • 787: 779 a/c

Thus, at the end of 2015 the combined backlog (firm) stood at ~2,500 airplanes. That is a 30% of the 8,300 forecast, and a 41% of the 6,050 aircraft (i.e. forecast reduced in 27%).

The sceptic reader could still have doubts of the quality of the backlog (i.e., some customers may go through troubled waters and cancel orders).

Last year, I published a post, “Boeing 787 orders, cancellations, deliveries & backlog through 2014“, in which I showed the orders and cancellations of the 787 programme since its launch. See the summary graphic below:

787 orders, cancellations, deliveries and backlog through 2014.

787 orders, cancellations, deliveries and backlog through 2014.

The 787 programme experienced serious delays and industrial issues from 2009 to 2013 in the midst of the worst financial and economic crisis since the Great Depression of the 1930s. Through 2014, the programme had suffered 247 cancellations out of 1,318 gross orders, that is almost 19% of cancellations.

I believe that 19% can be considered an upper ceiling of how much of the current 2015 twin-aisle backlog (~2,500 a/c) could be considered as dubious. Thus, at least about 2,000 firm orders could be seen as rather secured.

Let’s see at the question (was 2015 a peak year?) from a different perspective: in the immediate coming years, what are the announced production rates?

Thus, according to the announced production rates and targets, in 2016 we should see about 380 twin-aisle combined deliveries, higher than the 367 we saw in 2015.

Leave a comment

Filed under Aerospace & Defence

Commercial wide-body airplanes’ deliveries per year, 1969-2015

The first wide body commercial airplane, the first twin-aisle ever, the Boeing 747 first flew in February 9th 1969 and it was first delivered to a customer (Pan Am) in December 1969. In the following years new wide bodies arrived to the market: the Douglas DC-10 (in 1971), the Lockheed TriStar (1972), the Airbus A300 (1974)…

In the last weeks, both Airbus and Boeing have released the figures of aircraft deliveries for the complete 2015. With them I updated a graphic I had made back in 2013 with the commercial wide-body airplanes’ deliveries per year. Take a look at it.

Commercial wide-body airplanes' deliveries per year, 1969-2015.

Commercial wide-body airplanes’ deliveries per year, 1969-2015.

Some reflections:

For the first time ever, over 400 twin-aisle aircraft were delivered in a year. The feat is remarkable.

The average number of deliveries for the previous 20-year period (1995-2014) was 215 airplanes per year. Up to now, in the previous 46 years of twin-aisle market, in only 3 years more than 300 airplanes were delivered in a single year (the previous 3: 2012, 2013 and 2014) and only 12 times more than 200 airplanes had been delivered (including the previous 3 with more than 300).

The combined steep production ramp-up during last 4 years has enabled to reach a production rate of almost the double of what was produced just 5 years ago. In particular, the combined compound annual growth rate (CAGR) of the rate of deliveries for the last 5 years has been 16.1%, for the last 10 years 10.4%. These rates are the triple and double than the yearly growth of traffic (measured in RPKs).

With the figures up to the end of 2015, almost 8,000 wide-body airplanes had been delivered. Thus, by now, end of January 2016, we have certainly reached the figure (1). We however don’t know whether the 8,000th twin aisle was a Boeing or an Airbus (2).

The share of deliveries in 2015: 65% Boeing and 35% Airbus. Boeing has slightly increased its share of deliveries in the last 4-5 years, in particular with the ramp-up of the 787.

There were 135 787s delivered in 2015. That is another remarkable feat: the largest amount of twin-aisle deliveries of a single model in a single year ever.

Only 6 times ever (combination of model-year) have there been twin-aisle deliveries of over a hundred airplanes: the A330 in the last 4 years (with a peak of 108 airplanes in 2013 -then a record- and 2014) and the 787 the last two years. Only other 10 times there were deliveries of more than 80 airplanes of a single model in a year: the A330 (2010-2011), the 747 in 1970 and the 777 (7 times, including the last 4 years consecutively, out of which the last 3 on the verge of 100 deliveries – 98, 99, 98).

Two days ago Boeing released its 2015 earnings, and with it news of 777 production cut came up. Some time before similar news had come of 747 production rate decrease. With these news, quickly came comments of whether aerospace cycle may have peaked (see here). Looking backwards it’s clear that 2015 was a peak in wide-bodies deliveries. Looking forward it may have been a short-term peak, but looking further ahead it is not so clear. I will leave for another post the outlook of past deliveries mixed with what Airbus and Boeing market forecasts say (GMF and CMO, respectively).

(1) With the sources I used,  at the end of 2015 there were a combined 7,988 wide-bodies delivered. However, I found different figures for the deliveries of the Ilyushin IL-86 (between 95 and 106). In any case, both figures would leave the total tally below 8,000 (making 2016 “the year of the 8,000th delivery”); I took for the analysis most conservative figure.

(2) Working at the moment for the Airbus A330neo programme, I will assume the 8,000th delivery was an A330, rather than a Boeing.

(3) I have indicated in the post that we have just passed the mark of 8,000 wide-bodies delivered since 1969, and, on the other hand, the different studies state that there are about 4,900 twin-aisle in operation. The gap of ~3,100 airplanes corresponds to those retired, parked, scrapped, crashed, displayed in museums…

1 Comment

Filed under Aerospace & Defence

Wide-body mix in 17 years of Boeing CMOs

Two years ago, I wrote a post showing the puzzling change in Boeing’s predicted mix of twin-aisle sales, between small and medium wide-bodies (“Wide-body mix in 15 years of Boeing CMOs”) (1). A few days ago I wrote a post about the publishing by Boeing of its Current Market Outlook for 2015-2034.  As I noted in that post, this year’s CMO is consistent with last year’s figures, i.e., the larger share of the forecasted market corresponds to small wide-bodies (787s from Boeing’s perspective). Recall the numbers:

  • small wide-bodies: 4,500 a/c in CMO2015 (passenger aircraft only),
  • medium wide-bodies: 2,990 a/c in CMO2015 (same figure as in CMO2014).

In the sub-segment of the medium wide-bodies passenger aircraft figures for  have remained constant and there is a slight increase in freighters (60 a/c); whereas for small wide-bodies the main increase is seen in the passenger aircraft (+230 a/c).

Since I keep a collection of CMOs from many years, I will include again a comparison going 17 years back…

Twin-aisle mix distribution (Boeing CMO 1998-2015, includes both passenger and freighter aircraft).

Twin-aisle mix distribution (Boeing CMO 1998-2015, includes both passenger and freighter aircraft).

Seeing at the graphic, made using Boeing’s forecasts’ figures:

  • During the first 5 years (1998-2003) the trends are quite constant, seeing medium wide-bodies a slightly higher demand.
  • From 2003 to 2007, the mix is reverted, possibly to favour the launch of the 787.
  • In 2008 the CMO did not provide the split.
  • From 2009 to 2013, you can see that both trends in the forecasts are erratic… why? Only Boeing knows. (2)
  • From 2013 to 2015, it seems that the trends are stabilized again in a higher demand for 787-size aircraft.

(1) Last year, I made an update of that post with the consolidated view of the last 16 years, find it here.

(2) A speculation: a Boeing-internal need to sell the concept of the 777X?

Leave a comment

Filed under Aerospace & Defence

Boeing 787 recurring costs vs. recurring income

Few days ago I was discussing with some commenters on the blog of aviation analyst Scott Hamilton (Leeham News and Comment) about the recurring costs Boeing may be experiencing in the 787 program at the moment.

I used in the discussion the analysis I had made of the learning curve Boeing has experienced in the last 2 years according to cost reductions reported by its CFO, Greg Smith. See a post I wrote about it here. The result I reached is that lately they achieved a 87%. With information disclosed last year, the figure I arrived for 2013 was ~84%, see the post here. However, in the calculation to obtain the learning curve experience the actual costs are not needed, it is sufficient to know cost reductions achieved (reported) between given units.

However, when in 2011 I wrote a series of posts (1) about Boeing 787 break even, I did try to estimate what the cost of the first production units were using published information at the time. At that time it was disclosed that Boeing had about 18bn$ of work in process (WIP) and a number of aircraft in different stages of production. Reported average costs ranged from 250m$ to 400m$. I made some simple assumptions and arrived at an average cost of 310m$ for the first ~60 units.

The next step is to accommodate those average costs into a learning curve profile. The steeper the curve (75%) the more expensive the first unit would have been. Since in 2013 the calculated curve was a 84%, I obtain that the first must have been around 650m$ (2). From then on, I apply the mentioned 84% through end 2013. Then I switch to a 87% curve (slower learning) following the reported figures from Greg Smith.

This discussion so far gives an idea of how to estimate the recurring costs. At the end of 2014 this figure is estimated around 180m$.

In order to know by when Boeing will turn the production of 787s into something profitable, we first need to know by when the recurring costs will be lower than the recurring income. The latter is estimated from the information about prices (published by Boeing here) and discounts applied (estimated in other blog posts, see the last update for 2014).

Boeing list price for the 787-8 in 2014 was 218.3M$.

These list prices are, however, increased almost on a yearly basis by Boeing. Sometimes very steeply (+11.4% in 2010, from 2008) and other times more moderately (+2.4% in 2013 vs. 2012). Going into the future I assumed this increase to be constant and about equal to 2014′ increase, 3%.

On the other hand, Boeing applies some discounts to its customers. These are never disclosed. Some are reported by some sources. What I do is to try to estimate an average discount from reported information. See a detailed calculation here. The latest figure that I arrived at was about 47%. Going into the future I assumed this discount to remain constant. You can see here the recent evolution of discounted 787-8 prices.

With all these ingredients, the only thing left is to plot together the recurring costs and recurring income:

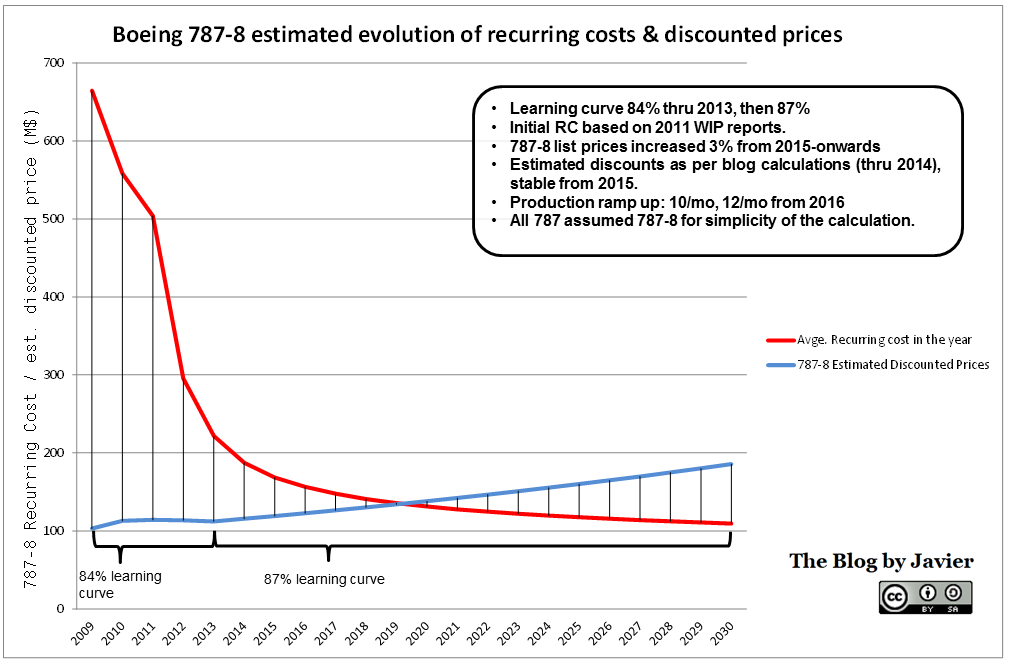

787 recurring cost vs. recurring income evolution.

787 recurring cost vs. recurring income evolution.

As you can see recurring costs may be lower than recurring income at the end of 2019.

This will truly depend on the learning curve achieved, the number of units produced (3) and the pricing power Boeing manages to have. If the learning is steeper, the date will be sooner. If the ramp up is higher, the date will be sooner. If the discounts are lower or the list prices increased more, the date will be sooner. In any other case, either 2019 or beyond.

(1) See the complete series here: “Will Boeing 787 ever break-even?“, “More on Boeing 787 break even” and “787 Break Even for Dummies“.

(2) We will never know that figure. I wonder whether this is even known or registered (if not deleted and forgotten) within Boeing.

(3) For the numbers of units built I based the model in reported information that the ramp up to 12 aircraft per month is expected for 2016. I assumed that in 2015 they are at somewhere between 10 and 12 aircraft per month.

Leave a comment

Filed under Aerospace & Defence

Boeing list prices increases vs. discounts increases (update for 2014)

In a previous post I updated the estimate of what is the average discount Boeing applies when selling its commercial airplanes using 2014 data of list prices, deliveries and reported revenues. The figure I came up with was a 47% discount. I included the following graphic showing the discount evolution:

Boeing Average Discount Evolution, through 2014.

Boeing Average Discount Evolution, through 2014.

Last year, seeing the increasing trend of average discount together with knowing the fact that Boeing regularly increases list prices triggered the following question: Have Boeing airplane discounted prices increased, decreased or stayed constant in the recent years? I set out to answer this question using the estimated average discount of each year (1) from the graphic above.

The Boeing list prices (LP) (2) can be found here. I have been recording those prices for years and thus have a table with the evolution of list prices for each model year by year. The following step is to apply the average discount estimated for each year to then-year list prices, to get the estimated discounted prices (EDP) (2) per model. Thus, a table can be built for the last 6 years.

You can find below the result for the best-selling aircraft during previous years: 737-800, 737-900ER, 777-300ER and 787-8. Together these 4 models amounted to over 640 deliveries in 2014 or 89% of the total 723 airplanes Boeing delivered in 2014.

Boeing List and discount Prices evolution table, 2008-2014.

Boeing List and discount Prices evolution table, 2008-2014.

In the table above I included in black figures what have been Boeing list prices of these models in the past years (as reported in their website) while I marked in blue the figures which are estimated, using as a departure point the calculated averages discounts per year (also included in blue in the table). I included as well the list prices year-on-year change as a % of the previous year list prices, per model.

The average list price increase included at the bottom line is computed with the information of all Boeing models (19 in 2008 and 20 in 2014, though different ones (e.g. last year addition of 777-8X and 777-9X), a total of 26 different models along this period), not only the 4 included in this table.

You may see in the table above that after not increasing prices in 2009, Boeing has steadily increased them in 2010 (6.3%), 2011 (4.7%), 2012 (6.7%), 2013 (1.9%) and 2014 (3.1%). However, if you take a look at the blue figures in the same table you will notice that prices of 2014 are between 2010 and 2011 price levels for all 4 models! That is, the widely announced yearly list prices increase has been yearly offset by a discreet (not-announced) increase in the discounts applied to the sales of airplanes. Thus, the pricing power of Boeing has remained barely constant during the last 5 years. You may see it better in the graphic below:

Boeing List & discount Prices evolution graphic vs. inflation in USA (through 2014).

Boeing List & discount Prices evolution graphic vs. inflation in USA (through 2014).

The graphic shows the price evolution for each of the 4 airplane models selected, taking as a reference their list and estimated discounted prices in 2008 (indicated as 100%) and also the evolution of inflation in the USA (3) in purple, to reflect the evolution of real prices (i.e. accounting for inflation). List prices are shown with straight lines, versus dashed lines used for estimated prices. Each pair of prices for each aircraft is presented in the same color for easier identification. Some comments to the graphic:

  • Through continuous increases, 2014 list prices were between 21% (737 and 777) and 31% (for the 787) higher than in 2008.
  • However, due to increasing discounts from 38% in 2008 to 47% in 2014, the increase in list prices is almost entirely offset (especially for 737 and 777, just 4% above 2008 levels).
  • 2014 discounted prices are below 2011 discounted prices for all models except 787.
  • If compare the evolution of prices vs. the US inflation (general prices in 2014 being 10% higher than in 2008), we see that:
    • Boeing actually lost pricing power in both the 737 and 777, which are cheaper in real (inflation-adjusted) discounted terms in 2014 than they were in 2008 (about 6% cheaper).
    • Only the 787 has been able to keep up the pace of discount escalation and inflation.

(1) There is no way to know the real price and discount that Boeing applies in each sale, as it will depend from customer to customer (American Airlines -AMR- or Fedex) and from model to model (737-800 or 787-8). There where competition is tougher, discounts will be higher. However, the estimates I have made are an average of all Boeing aircraft sold in a given year.

(2) Both list prices (LP) and estimated discounted prices (EDP) are expressed in then-year dollars.

(3) US inflation series since 2008: -0.4% (2009), 1.6% (2010), 3.2% (2011), 2.1% (2012), 1.5% (2013) and 1.6% (2014).

Leave a comment

Filed under Aerospace & Defence

Boeing 787 orders, cancellations, deliveries & backlog through 2014

The year 2014 seems to have been another complex for the Boeing 787 program.

There were no major operational hick-ups such as the 2013 grounding of the fleet due to the lithium-ion batteries heat runaway issues, but commercially just 65 new orders were received (main ones from Air Europa and ANA) with up to 24 cancellations. Production ramped up to 112 deliveries (almost double than 2013’s 63). This increase is positive in relation to revenue recognition and cash inflow, however the cost per unit enjoyed a lower improvement than expected. As a result of previous figures, the so-called book-to-bill on the program was below 0.6, making the backlog to shrink slightly (leaving it practically at the same level since 2007).

An image is worth a thousands words:

787 orders, cancellations, deliveries and backlog through 2014.

787 orders, cancellations, deliveries and backlog through 2014.
